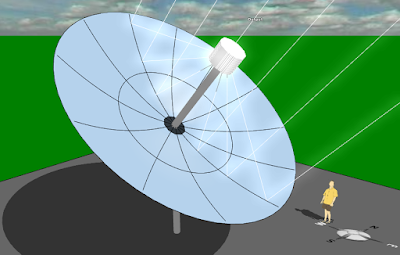

|Fig. 1: A parabolic dish Stirling engine|
|Fig. 2: The Tooele Army Depot solar project in Utah|
A parabolic dish Stirling engine is a concentrated solar power
(CSP) generating system that consists of a stand-alone parabolic dish reflector focusing sunlight onto a receiver positioned at the parabolic dish's focal point. The dish tracks the sun along two axes to ensure that it always faces the sun for the maximal input (for photovoltaic solar panels, this type of tracker is typically known as dual-axis azimuth-altitude tracker, or AADAT). The working fluid in the receiver is heated to 250–700 °C and then used by a Stirling engine to generate power. A Stirling engine
is a heat engine that operates by cyclic compression and expansion of air or other gas (the working fluid) at different temperatures, such that there is a net conversion of thermal energy to mechanical work. The amazing Stirling engine was invented 201 years ago(!). You can see an infrared view of a Stirling engine
at work in a blog article I posted early last year.
Although parabolic dish systems have not been deployed at a large scale -- compared with its parabolic trough cousin and possibly due to the same reason that AADAT is not popular in photovoltaic solar farms because of its higher installation and maintenance costs, they nonetheless provide solar-to-electric efficiency above 30%, higher than any photovoltaic solar panel in the market as of 2017.
In Version 7.2.2 of Energy3D
, I have added the modeling capabilities for designing and analyzing parabolic dish engines (Figure 1). Figure 2 shows an Energy3D model of the Tooele Army Depot project in Utah. The solar power plant consists of 429 dishes, each having an aperture area of 35 square meters and outputting 3.5 kW of power.
|Fig. 3: All four types of real-world CSP projects modeled in Energy3D|
With this new addition, all
four types of main CSP technologies -- solar towers, linear Fresnel reflectors, parabolic troughs, and parabolic dishes, have been supported in Energy3D (Figure 3). Together with its advancing ability to model photovoltaic solar power, these new features have made Energy3D one of the most comprehensive and powerful solar design and simulation software tools in the world, delivering my promise made about a year ago
to model all major solar power engineering solutions in Energy3D.
An afterthought: We can regard a power tower as a large Fresnel version of a parabolic dish and the compact linear Fresnel reflectors as a large Fresnel version of a parabolic trough. Hence, all four concentrated solar power solutions are based on parabolic reflection, but with different nonimaging optical designs
that strike the balance between cost and efficiency.
